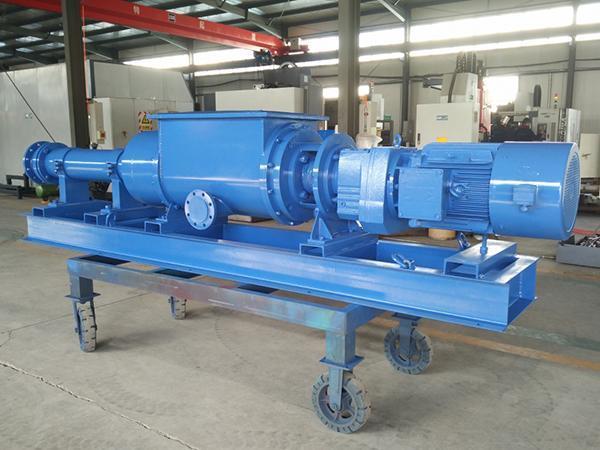

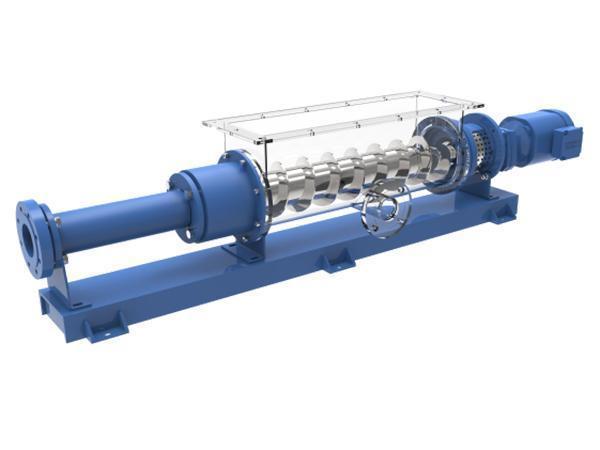

M2 Open Hopper Progressive Cavity Pump

  • M2 Open Hopper Progressive Cavity Pump
  • M2 Open Hopper Progressive Cavity Pump

Application
An M2 open hopper progressive cavity pump, which has a much larger hopper than other pumps, has the ability to better pump large grained mediums, and is thus suitable for the conveyance of thick mediums with a maximum of 30% solid content. The coupling shaft of the M2 CLASS progressive cavity pump has a helical blade that prevents any medium from blocking the inlet, which in turn has tremendously improved the ratio of the medium entering into the stator and rotor. This progressive cavity pump is often used in the following areas:

Starch industry: theconveyance of starch slurry, potato dregs, potato pulp, wheat gluten, paste and other starch materials
Environmental protection industry: the conveyance of sanitary sewage, industrial wastewater, diluted sludge, activated sludge, dewatered sludge, thicker materials, additives
Pharmaceutical industry: the conveyance of extract liquor and concentrated liquor of Chinese herbology, unguent, herb residue, dewatered sludge from pharmaceutical factories

Specification of VD-P04M2 Open hopper progressive cavity pump
Max working pressure 12 bar
Model Flow range m3/h Rotate speed range rpm Motor power Kw
VD050-011P04M2 1~5 120~220 2.2~5.5
VD060-019P04M2 2~7 100~220 3~7.5
VD070-029P04M2 3~12 80~200 5.5~11
VD090-053P04M2 5~20 70~180 7.5~18.5
VD100-080P04M2 8~30 70~170 11~30
VD120-120P04M2 10~40 70~160 18.5~45
VD150-230P04M2 15~55 60~120 22~55
VD170-300P04M2 20~60 50~100 30~75
Specification of VD-P06M2 Open hopper progressive cavity pump
Max working pressure 18 bar
Model Flow range m3/h Rotate speed range rpm Motor power Kw
VD050-011P06M2 1~5 120~220 3~7.5
VD060-019P06M2 2~7 100~220 5.5~11
VD070-029P06M2 3~12 80~200 7.5~18.5
VD090-053P06M2 5~20 70~180 11~30
VD100-080P06M2 8~30 70~170 15~45
VD120-120P06M2 10~40 70~160 22~55
VD150-230P06M2 15~55 60~120 30~90
VD170-300P06M2 20~60 50~100 37~110
Specification of VD-P08M2 Open hopper progressive cavity pump
Max working pressure 24 bar
Model Flow range m3/h Rotate speed range rpm Motor power Kw
VD050-011P08M2 1~5 120~220 5.5~11
VD060-019P08M2 2~7 100~220 7.5~18.5
VD070-029P08M2 3~12 80~200 11~30
VD090-053P08M2 5~20 70~180 15~45
VD100-080P08M2 8~30 70~170 22~55
VD120-120P08M2 10~40 70~160 30~90
VD150-230P08M2 15~55 60~120 37~110

Working principle of the progressive cavity pump
A progressive cavity pump is a displacement pump that, with an interference fit of the rotor in an eccentric motion and a fixed stator, will form a seal cage within the pump, moving material from the inlet to the outlet, thus completing the conveyance of the medium within the seal cage.

Structure of progressive cavity pump
Structural features
  • The stator and the rotor
    The stator and the rotor
  • Metal flexible universal joint
    Metal flexible universal joint
  • Spring flexible universal joint
    Spring flexible universal joint
  • Spherical teeth universal joint
    Spherical teeth universal joint

The rotor
The rotor shape can be designed as per customer requirements. For a metal rotor, after surface hardening or a vacuum heat treatment, the hardness can reach up to HRC65-67.

The stator
Materials: NBR, NBRH, HNBR, EPDM and FKM- all of which meet various working conditions

Universal joint
Alternative universal joints include a ball-and trunion joint, flexible universal joint, double offset universal joint, lardan universal joint and other joints.

Shaft seal
The packing seal and mechanical seal can be selected based on working conditions. The cooling system and flushing system can also be selected for the best possible way to prolong the shaft service life.

Driving system
The alternative driving system includes several high quality driving systems, such as SEW, NORD, ABB and others.

Weifang Subtor as a German Subtor invested company in China, offers wide range of progressive cavity pumps and components. The M2 class progressive cavity pump has typical applications as food pumping, industrial sewage pumping, domestic wastewater pumping, sludge pumping, chemical pumping, etc. A progressive cavity pump is a type of positive displacement pump, also known as eccentric screw pump. With German supported technology and rich marketing resources, Subtor provides quality PCP pumps with custom solutions for global clients.
